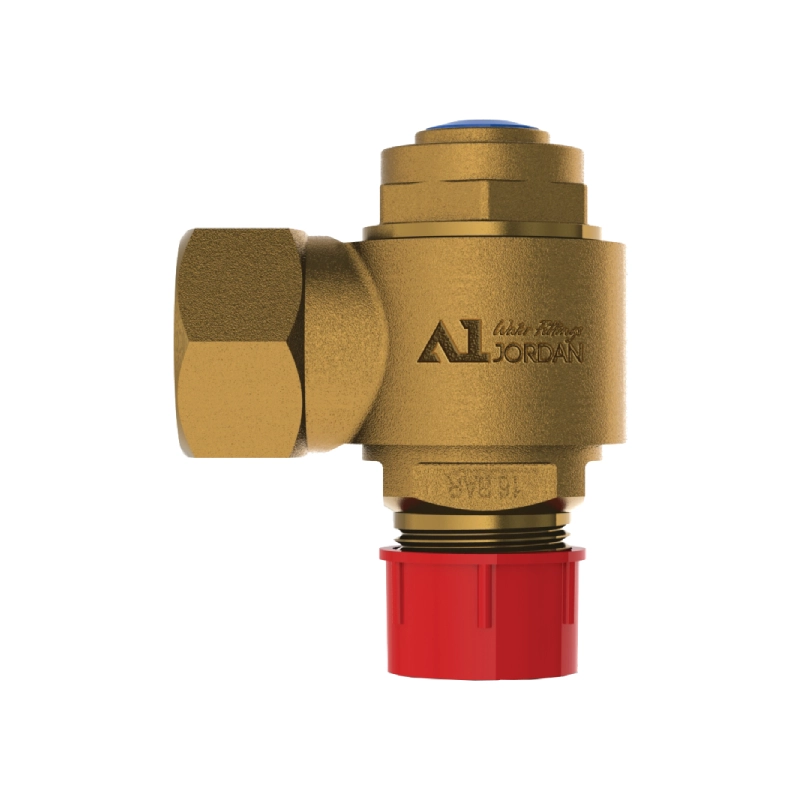

Standard Pattern Swivel Ferrules S Compression Fitting Outlet
• General
The ferrules are designed with a Push Fit or Compression outlet for
PE pipe. All ferrules are designed as a main stem with a 360° swivel
outlet at 90° with control of water flow via a threaded inner plug. The
inlet is a male taper thread to BS 21 (ISO 7/1). The ferrule is designed
for use underground and to handle potable water of up to 85° C. The
ferrule is capable of working at pressures up to 18 bar (270 psi)
without leakage. The ferrule is easily shut off by means of a spindle
extending from the top cap.
• Description of Design
The design of the ferrule permits service pipe installation via
conventional drilling and tapping machines dry or under pressure,
with or without service saddles. The design of the ferrule further
permits use with conventional drilling machines mounted onto the
ferrule/strap assembly to drill the main via the ferrule stem, dry or
under pressure.
• Construction
The ferrule stem, banjo, threaded spindle and top cap are
manufactured of gunmetal/bronze to BS 1400 LG-2. The banjo
washers and the top cap washer are manufactured in EPDM rubber
to BS 2494 (WRAS approved), the friction washer is made from
polypropylene, the serrated insert is in copper C.106 to BS 1172 or
BS 2871 part 2: 1972 °C””.
Nominal Sizes
1/2″”, 3/4″”, 1″”, 1.1/4″”, 1.1/2″” and 2″”.
Note
• All “”O’ring rubber used in the Swivel Ferrule are WRAS listed and
have been selected to give the best possible overall performance.
• Ferrules are designed for use underground and for handling potable
water at temperature of up to 85° C.
• Swivel Ferrules can be supplied in one of the following two versions:
a. With main stem with inner plug and spindle for valve isolation and
a 360° swivel outlet at 90° to the stem (these are designated as
Screw-down type), with control of water flow via the threaded
inner plug.
b. With inner plug and top plug (without spindle) for valve isolation
and a 360° swivel outlet at 90° to the axis of the inlet, with control
of water flow via the turning of the threaded inner plug with a key
(these designated as Standard-Pattern type).
Size |
½" ,¾" ,1" ,1¼" ,1.1½" ,2" |
---|
