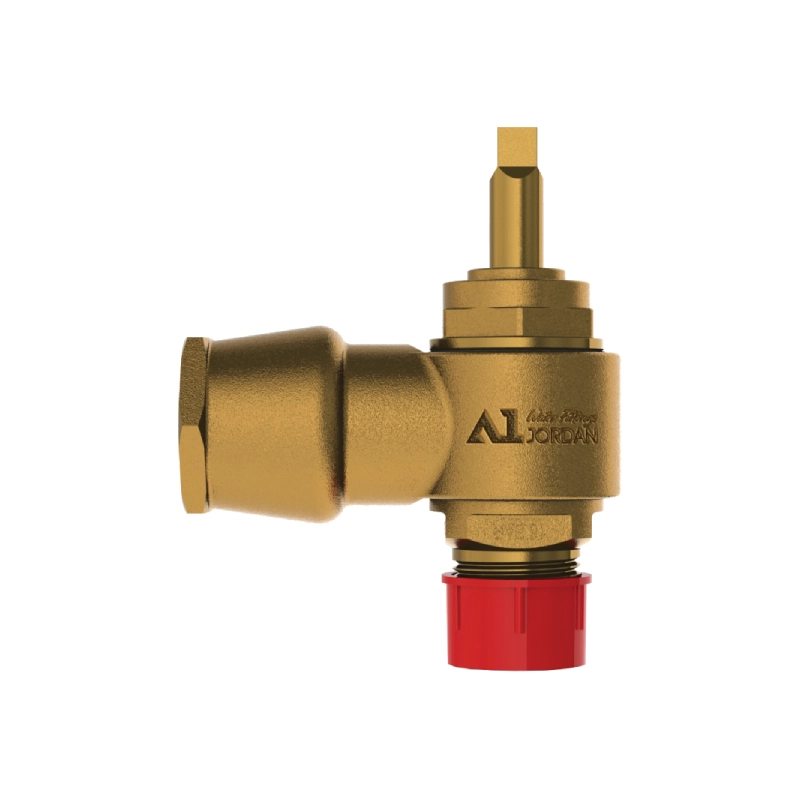

Screwdown Pattern Swivel Ferrules Push-fit Outlet – Gunmetal Banjo

• General
The ferrules are designed with a pushfit or compression outlet for PE
pipe. All ferrules are designed as a main stem with a 360° swivel
outlet at 90° with control of water flow via at threaded inner plug.
The inlet is male taper thread to BS 21 (ISO 7/1). The ferrule is designed
for use underground and to handle potable water at temperature of up
to 85°C. The ferrule works at pressures up to 18 bar (270 psi) without
leakage.
• Description of Design
The design of the ferrule permits service pipe installations via
conventional drilling and tapping machines, under pressure or dry,

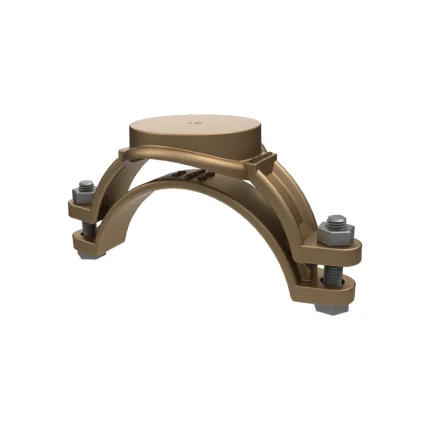

with or without service saddles. The design of the ferrule further
permit use with conventional drilling machines mounted onto the
ferrule/strap assembly to drill the main via the ferrule stem, dry or
under pressure.

• Construction
The ferrule stem, banjo, inner plug and top cap are manufactured of
gunmetal/bronze to BS 1400 LG2. The banjo washers and the top
cap washer are manufactured in EPDM rubber to BS 6920 (WRAS
approved).
